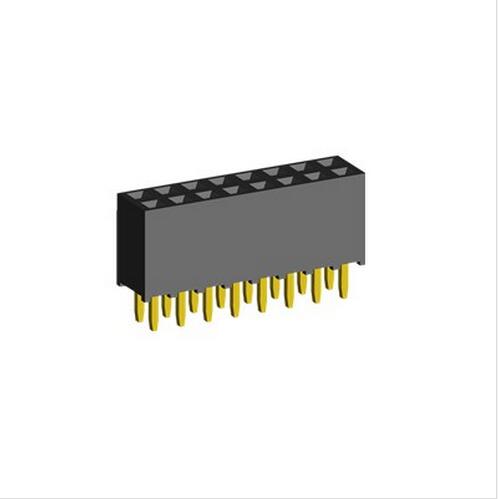

2.0mm pitch dip type Y shape terminal Female Header

Browse:

  • Specifications
  • Description
  • Insulator Material: Polyester, Ul94v-0
  • Terminal Material: Copper Alloy
  • Finish: Gold Or Tin Plated
  • Current Rating: 2 Ampere
  • Insulation Resistance: 1000m Ohms Min
  • Dielectric Withstanding Voltage: 1000 V /1 Minute
  • Contact Resistance: Initial: 20 m Ohm Max;Final: 4
  • Operating Temperature: ﹣40℃ to ﹢105℃
  • Y shape terminal female header,dip type
  • Brand:cylconn
2.0mm pitch dip type Y shape terminal Female Header
