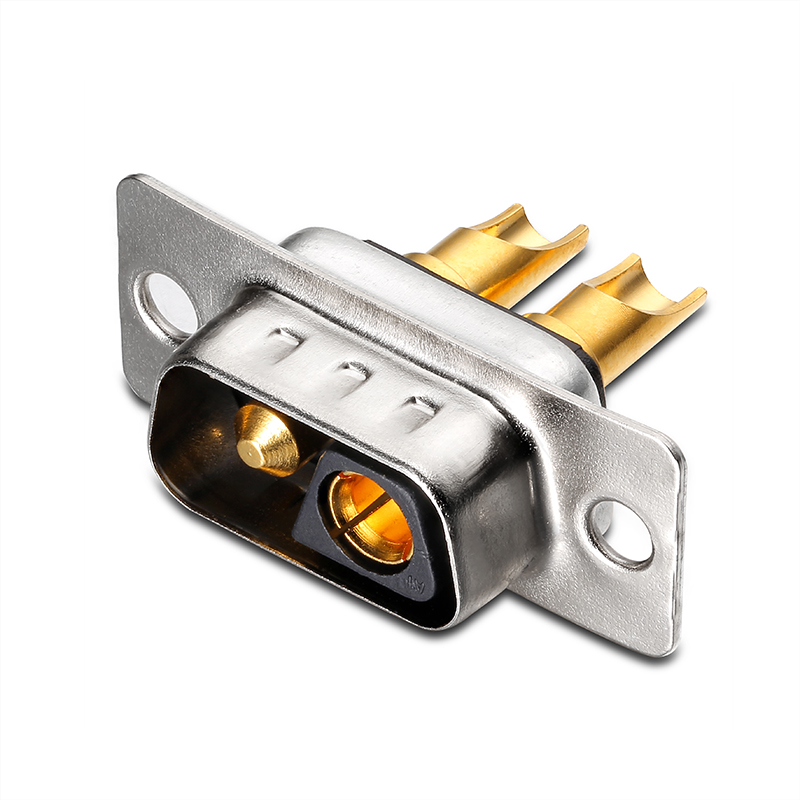

YL013-006 DH high current 2V2 female,machine pin,solder type D-sub connector

Browse:

  • Specifications
  • Description
  • Model NO.: YL013-006
  • Shell:Steel,Ni or Sn plated
  • Contact:Brass,selective gold plated
  • Rated current:1.0A
  • Rated Voltage:300V DC
  • Contact resistance:20m Ohms max
  • Dielectric withstanding voltage:500v AC,min
  • Insulation resistance:1000M ohms,min
  • Operating temperature: -55℃ ~ +85℃
  • Storage temperature: -55℃ ~ +105℃
  • Insulation material:PBT+30%GF,UL94V-0
